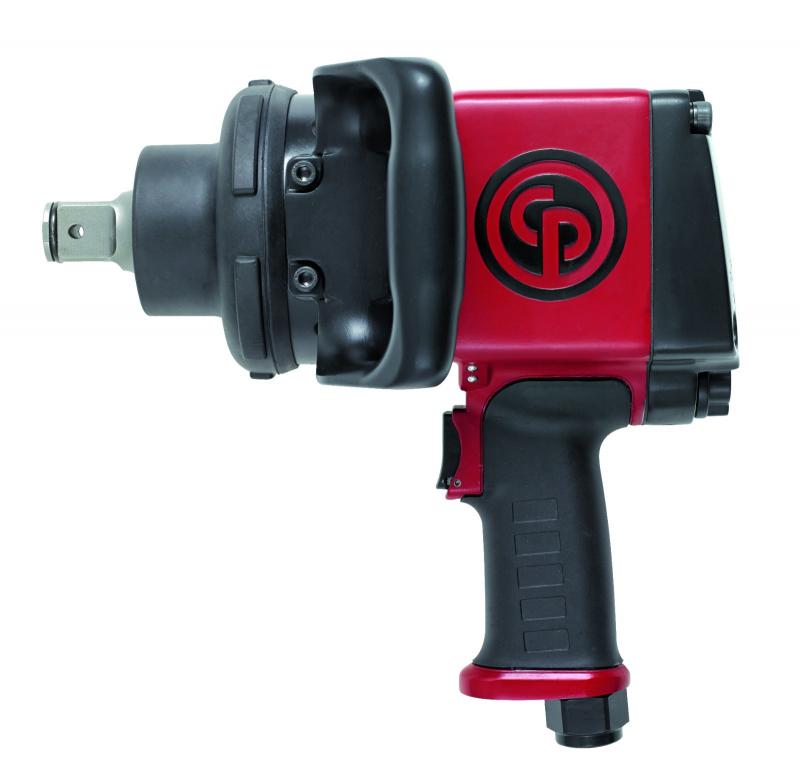

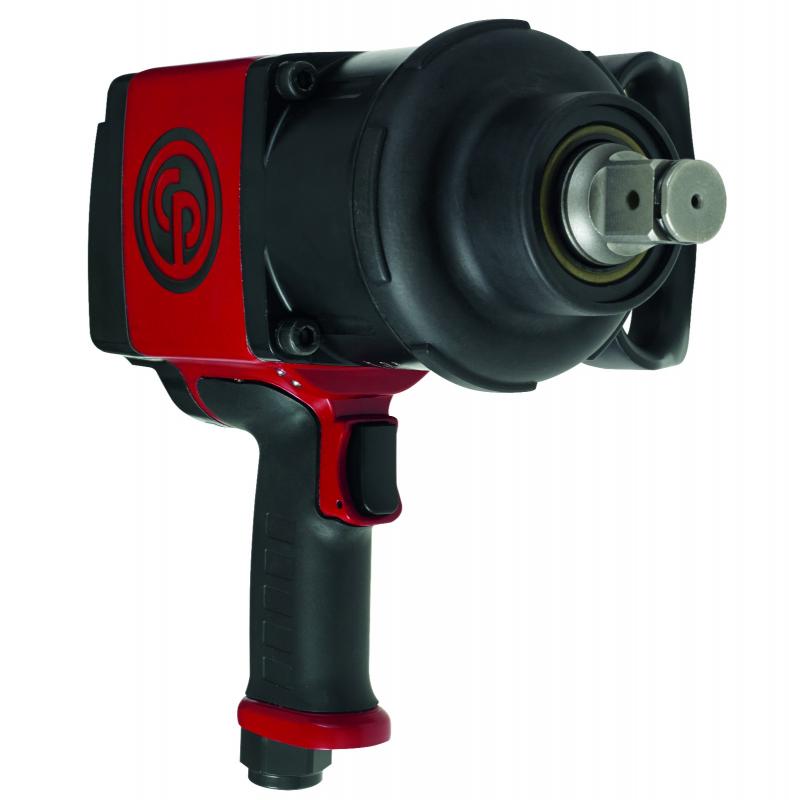

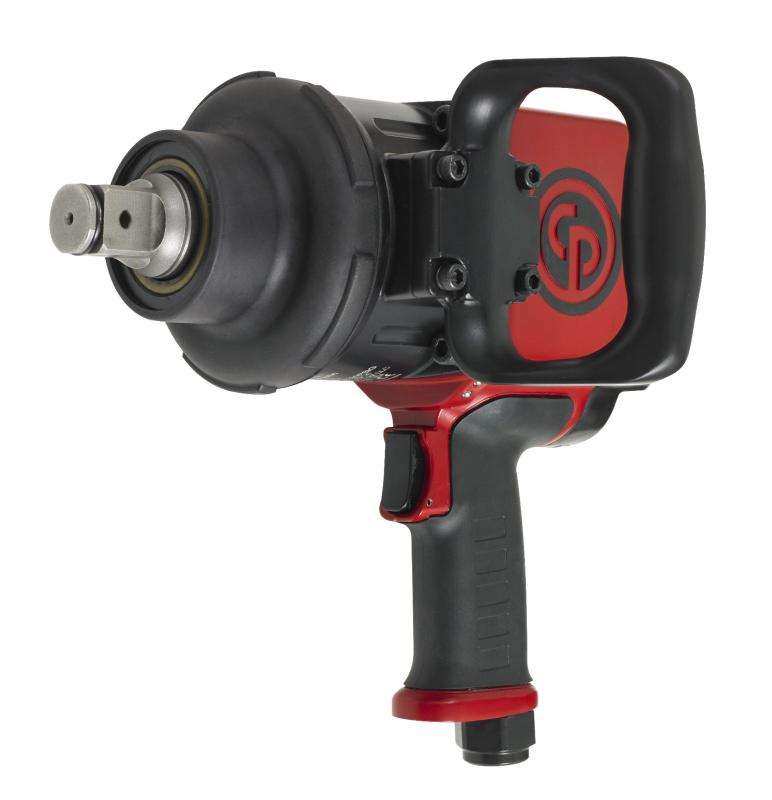

Chicago Pneumatic CP7776 1" Mutterdragare

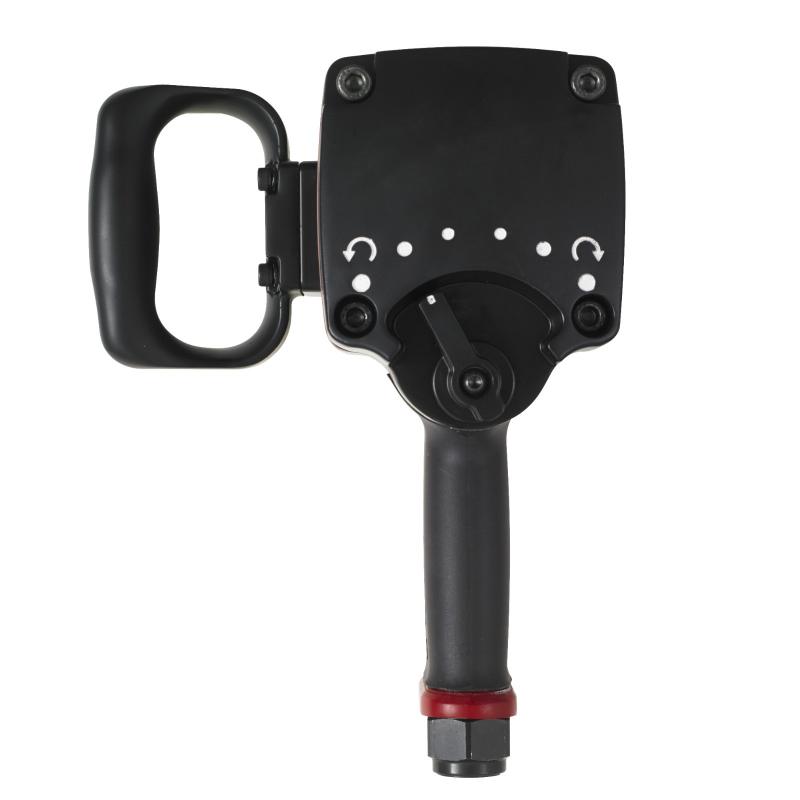

Max-moment: 2400 Nm, stark och robust mutterdragare, handtaget kan sättas fast i 4 olika positioner.
Lägg till en bevakning så meddelar vi dig så snart varan är i lager igen.
Chicago Pneumatic CP7776 1" Mutterdragare
Max-moment: 2400 Nm, stark och robust mutterdragare, handtaget kan sättas fast i 4 olika positioner.
| Model | CP7776 | |
| Part number | 8941077760 | |
| Actual air consumption | 15.6 l/s | |
| Air inlet thread size | 1/2 " | |
| Average air consumption | 3.9 l/s | |
| Bolt size | M32 mm | |
| Clutch type | Pin less closed rocking dog | |
| Free speed | 5000 rpm | |
| Handle type | Pistol | |
| Length | 289 mm | |
| Maximum Torque (reverse) | 2400 Nm | |
| Min. hose size | 13 mm | |
| Net weight | 11.2 kg | |
| Power/weight ratio | 214.3 Nm/kg | |
| Side to center | 109 mm | |
| Socket retainer | Dual (hole+friction) | |
| Sound Power | 104 db(A) | |
| Sound pressure | 93 db(A) | |
| Square drive | 1 " | |
| VST2 | 271 | |
| Vibration | 8.7 m/s² | |
| Vibration uncertainty (K) | 2.8 m/s² | |
| Vibration-ISO | ISO-28927-2 | |
| Working Torque Range (fwd) | 955 - 2073 Nm |
